A drag racing car produced by Ford.  A version of the Fairlane.

History

The following section is an excerpt from Wikipedia's Ford Fairlane Thunderbolt page on 29 September 2018, text available via the Creative Commons Attribution-ShareAlike 3.0 Unported License.

The Ford Fairlane Thunderbolt is a limited production, factory experimental, drag racing automobile built by Ford in 1964. A total of 100 units were produced; forty-nine 4-speeds and fifty-one automatics, enough to secure the 1964 NHRA Super Stock championship for Ford.

Based on the Fairlane and named for a factory experimental Fairlane of 1963, the Thunderbolt combined the light weight of Ford's intermediate-sized body introduced in 1962 with a "high rise" 427 cu in (7.0 L) V8 engine with dual 4-barrel Holley carburetors intended for use in the much larger Galaxie. That engine as used in the Galaxie for NASCAR racing did well, but the Galaxie was simply too heavy an automobile in stock trim to be drag raced successfully; so-called "lightweight" 427-powered Galaxies were built both for stock car racing as well as drag racing during the 1964 model year, although these cars were not modified to the extent of the Thunderbolt. As installed in the Thunderbolt, the engine was rated conservatively (like all US car motors, due to insurance regulations) at 425 hp (431 PS; 317 kW) at 6,000 rpm and 480 lb⋅ft (651 N⋅m) at 3,700 rpm of torque; estimates placed the actual output was close to 600 hp (608 PS; 447 kW). In standard form, the Fairlane is 12 in (305 mm) shorter than a Galaxie, rides on a 3.5 in (89 mm) shorter wheelbase and weighs approximately 700 lb (318 kg) less. Installing the Ford FE V8 in a vehicle intended for an engine no larger than a Ford Windsor/Challenger engine required major reworking and relocation of the car's front suspension components and the modification and strengthening of the suspension mounting areas. Fiberglass doors, hood, front fenders and even the front bumper on the earliest cars along with Plexiglas side and rear windows aided in weight reduction; the hood with its distinctive raised "teardrop" ram air scoop designed to draw hot air from the engine compartment was pinned in position, eliminating the need for a hood hinges and a latch. Later cars have aluminum front bumpers in place of the fiberglass units due to racing regulations.

Racing equipment includes tubular exhaust headers, an electric fuel pump, altered rear suspension with heavy-duty traction control bars and asymmetrical leaf springs, trunk-mounted heavy duty battery, locking differential, auxiliary gauges, special drag race wheels and tires supplied both by Goodyear and Mickey Thompson (himself a recipient of one of the first ten cars) and an aluminum scatter shield designed to contain the clutch in case of disintegration under load. The claimed compression ratio was 13.5:1.

Other weight-saving measures include the elimination of such street items as the sunvisors, radio, heater, wheel covers, passenger-side windshield wiper, arm rests, rear window cranks, mirrors, sound deadening material, carpeting, trunk mat, lug wrench, jack and spare tire. The front seats are either lightweight units from Ford's police package vehicles or rudimentary bucket seats from the Econoline van; the carpeting was replaced with a black rubber mat. The rear seat is a standard Fairlane unit. The high-beam headlights were eliminated as well and in their place are mesh-covered air intakes which run directly to a special air cleaner atop the 427. Like the street version, the Thunderbolt's outer high-low 5.75 in (146 mm) headlights of the type normally used with a four-lamp system are selectable with a standard foot-operated switch. Though it was technically a street-legal vehicle, these modifications and deletions along with a final drive ratio of 4:57.1 for the four-speed cars and 4:44.1 for the automatics make the Thunderbolt impractical for street use.

The Thunderbolt was not built on a regular Ford assembly line, but rather in conjunction with Andy Hotton of Dearborn Steel Tubing. It was there that partially built Fairlane bodies in top-of-the-line "500" exterior trim were combined with the 427 and either a heavy-duty Lincoln automatic transmission or a Borg-Warner four-speed manual transmission. The first eleven cars were painted in Ford's "vintage burgundy" while the remaining eighty-nine cars were painted "Wimbledon white." The engine code reflected not the 427 on most cars but rather the so-called solid lifter "K-code" 289 hi- performance engine.

Given the special nature of the car, Ford riveted a metal plate to the inside of the glovebox door of the Thunderbolt and other race-only models with a disclaimer relating to fit and finish. The plate reads:

This vehicle has been built specially as a lightweight competitive car and includes certain fiberglass and aluminium components. Because of the specialized purpose for which this car has been built and in order to achieve maximum weight reduction, normal quality standards of the Ford Motor Company in terms of exterior panel fit and surface appearance are not met on this vehicle.

This information is included on this vehicle to assure that all customers who purchase this car are aware of the deviation from the regular high appearance quality standards of the Ford Motor Company.


Photographs

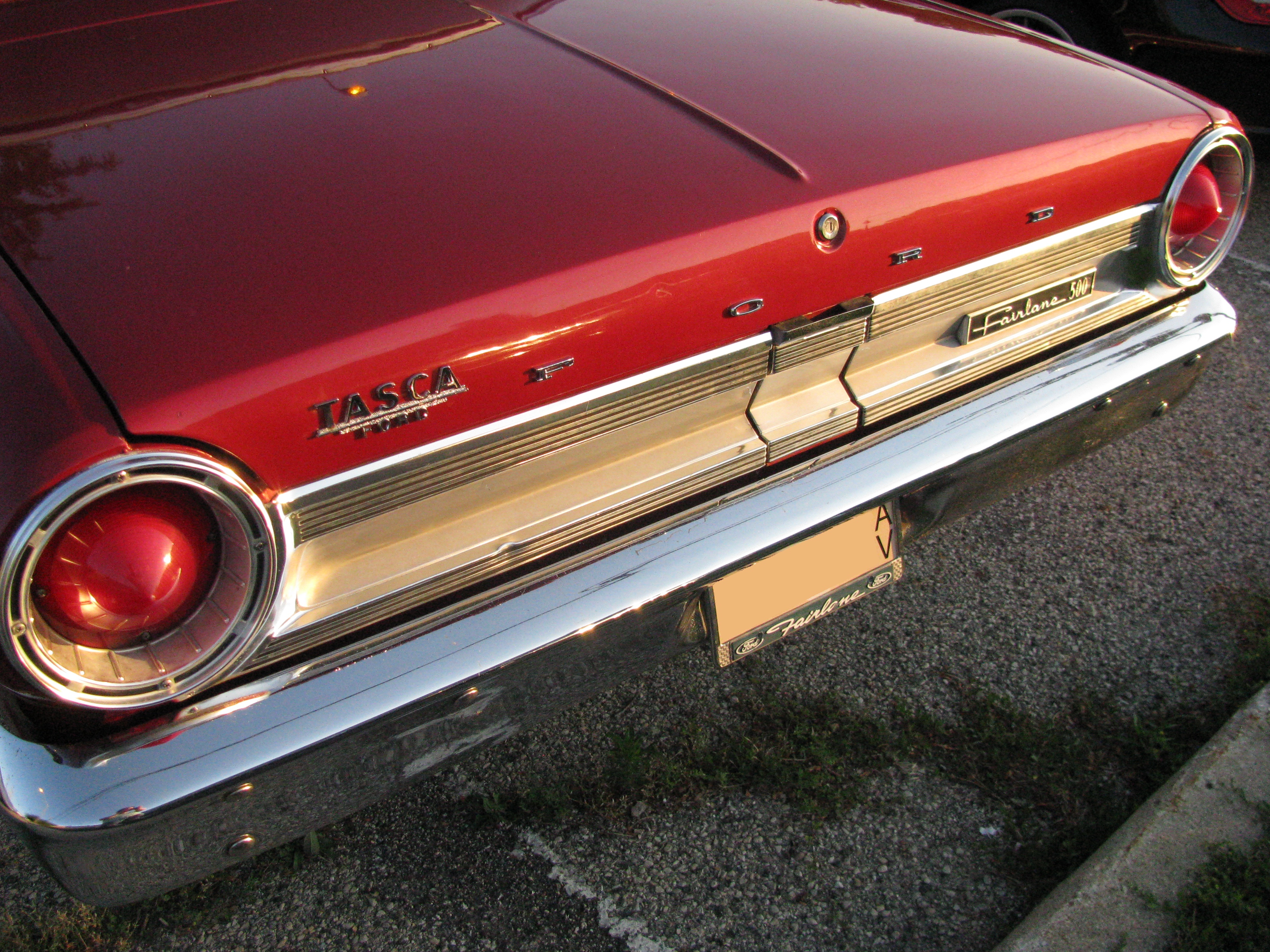

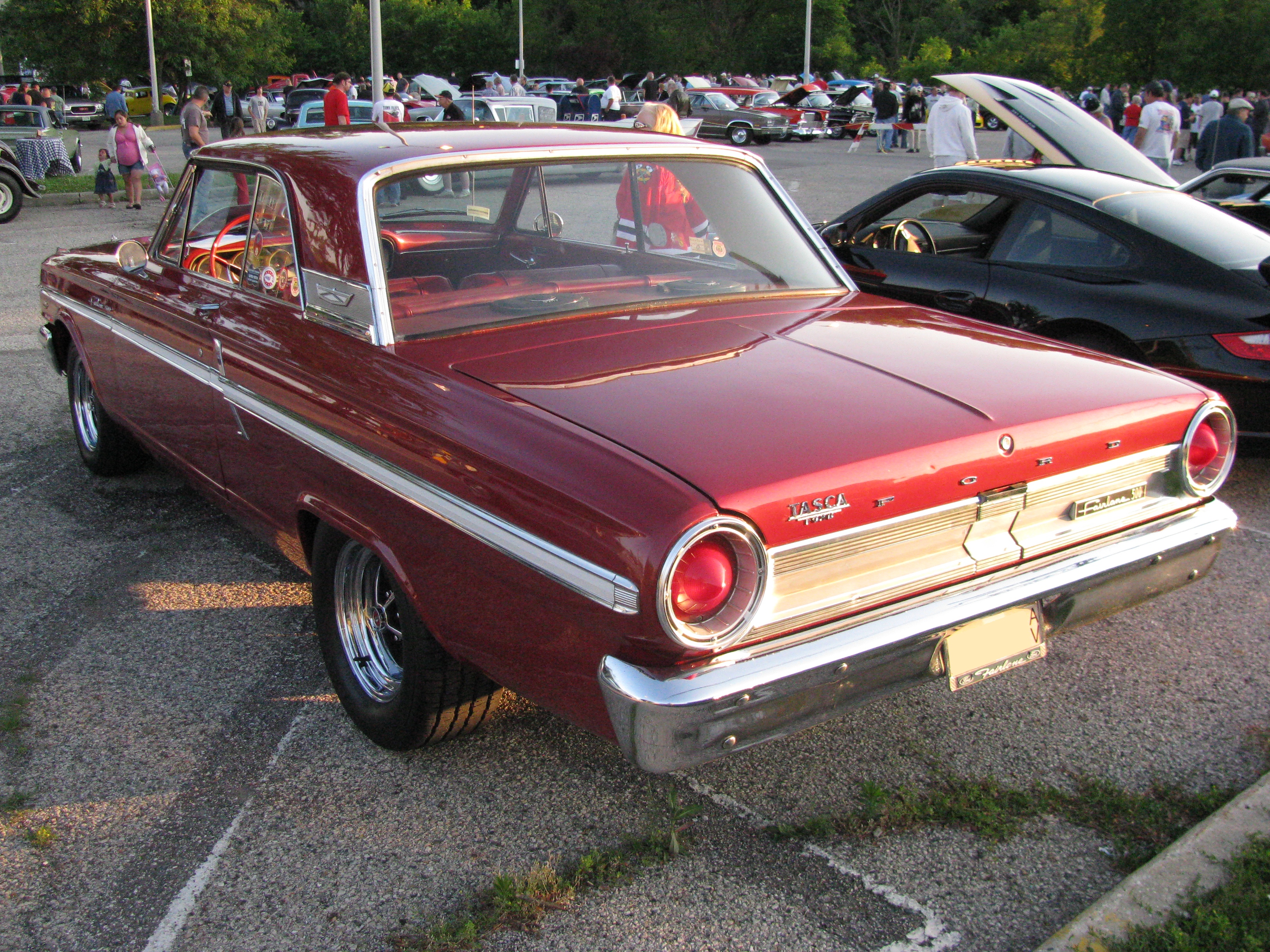

1964 Ford Thunderbolt 1964
Photo ©2010 Bill Crittenden
Green Street Cruise Night:  June 7, 2010
View photo of 1964 Ford Thunderbolt - 4,839KB
1964 Ford Thunderbolt 1964
Photo ©2010 Bill Crittenden
Green Street Cruise Night:  June 7, 2010
View photo of 1964 Ford Thunderbolt - 4,569KB
1964 Ford Thunderbolt 1964
Photo ©2010 Bill Crittenden
Green Street Cruise Night:  June 7, 2010
View photo of 1964 Ford Thunderbolt - 4,082KB
Tail Lights Cover: 1964 Ford Fairlane Thunderbolt November-December 2011 (18 pages)
Cover Car: 1964 Ford Fairlane Thunderbolt

Cover photo ©2010 Bill Crittenden, Green Street Cruise Night:  June 7, 2010
View Tail Lights Cover: 1964 Ford Fairlane Thunderbolt - 478KB
Download Tail Lights: September/October 2011 - 4,446KB

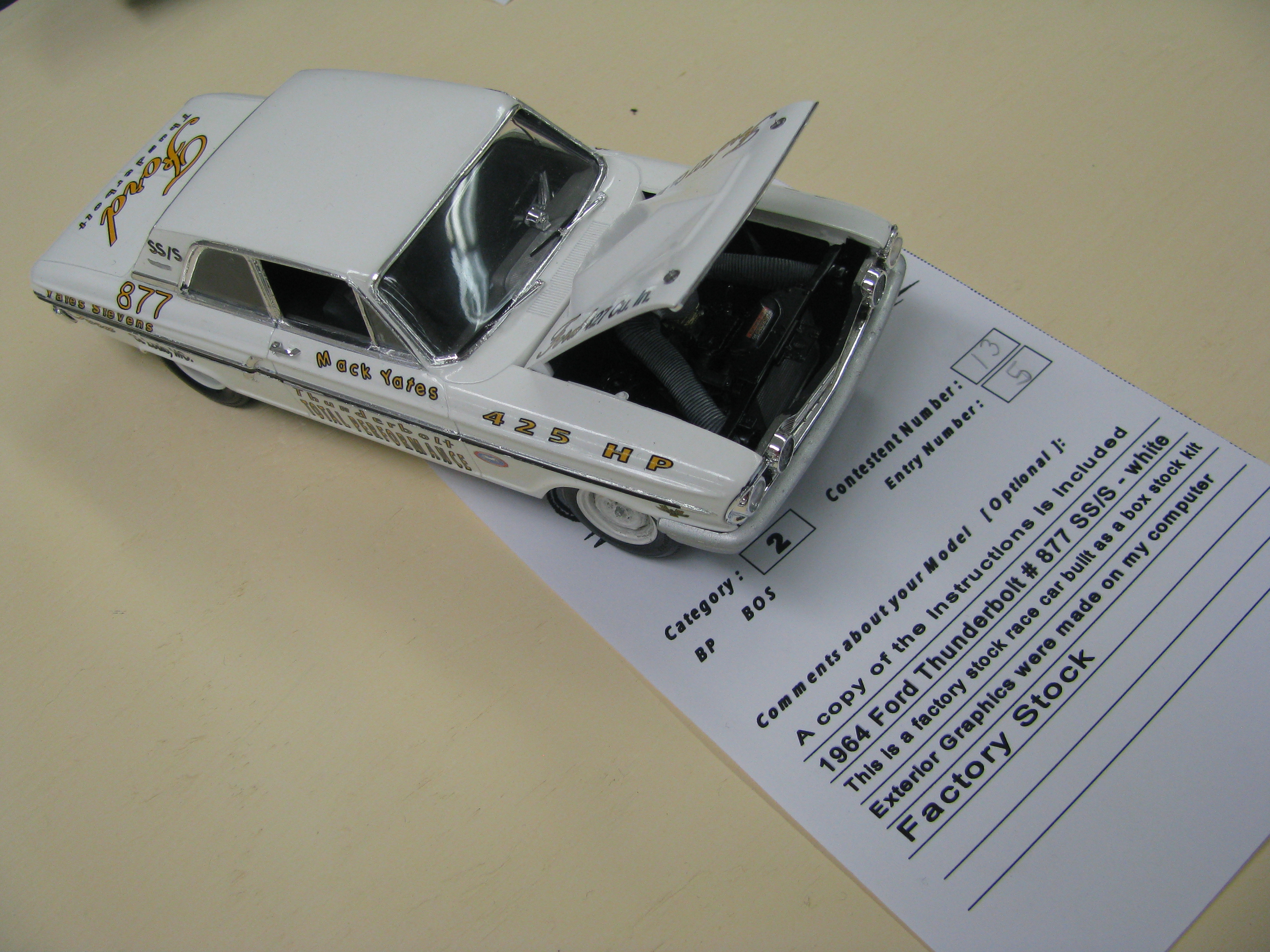

1964 Ford Thunderbolt Model Car 1964
Tasca Ford

Photo ©2009 Bill Crittenden
2009 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 3,259KB

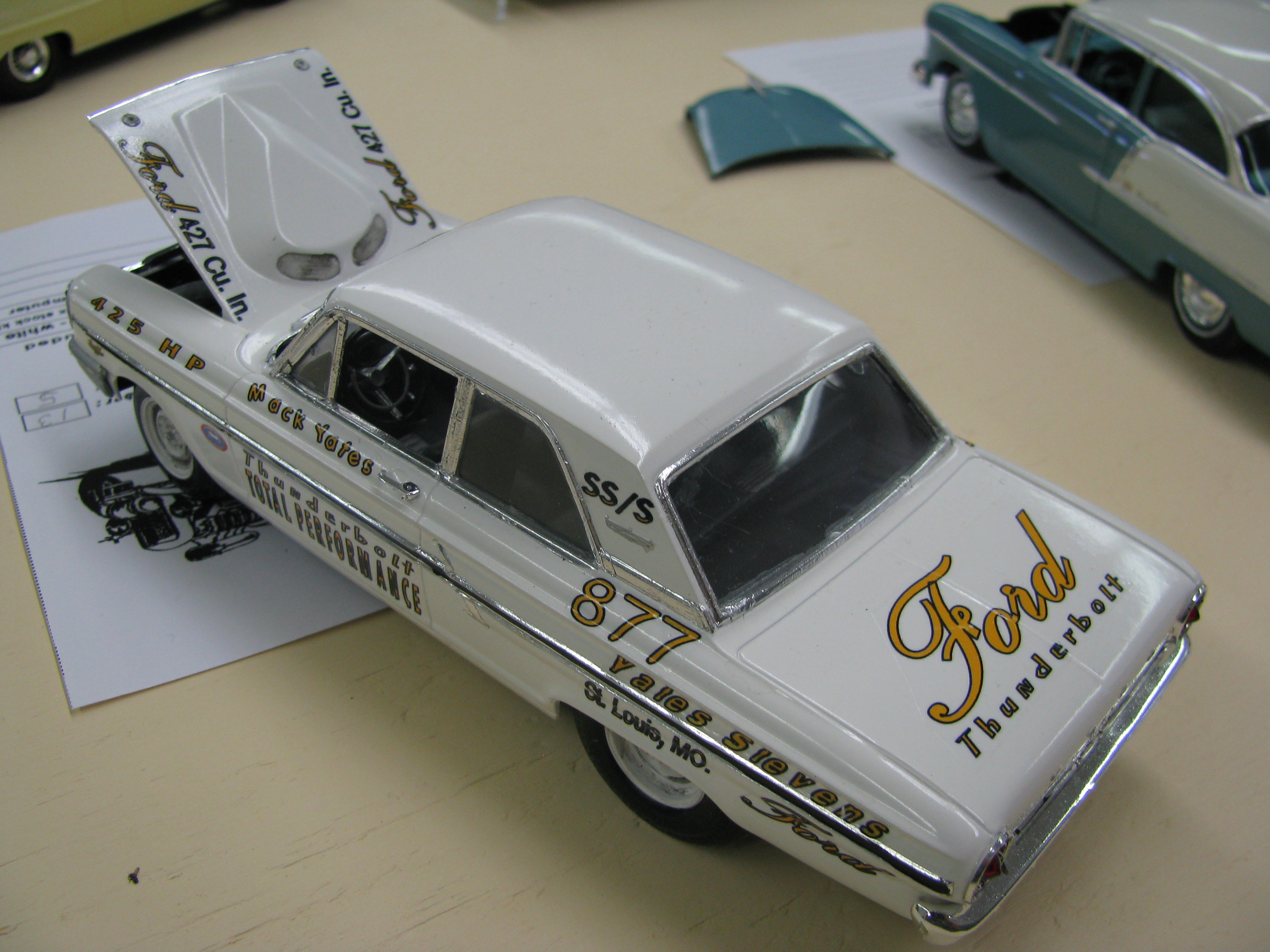

1964 Ford Thunderbolt Model Car 1964
Tasca Ford

Photo ©2009 Bill Crittenden
2009 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 3,480KB

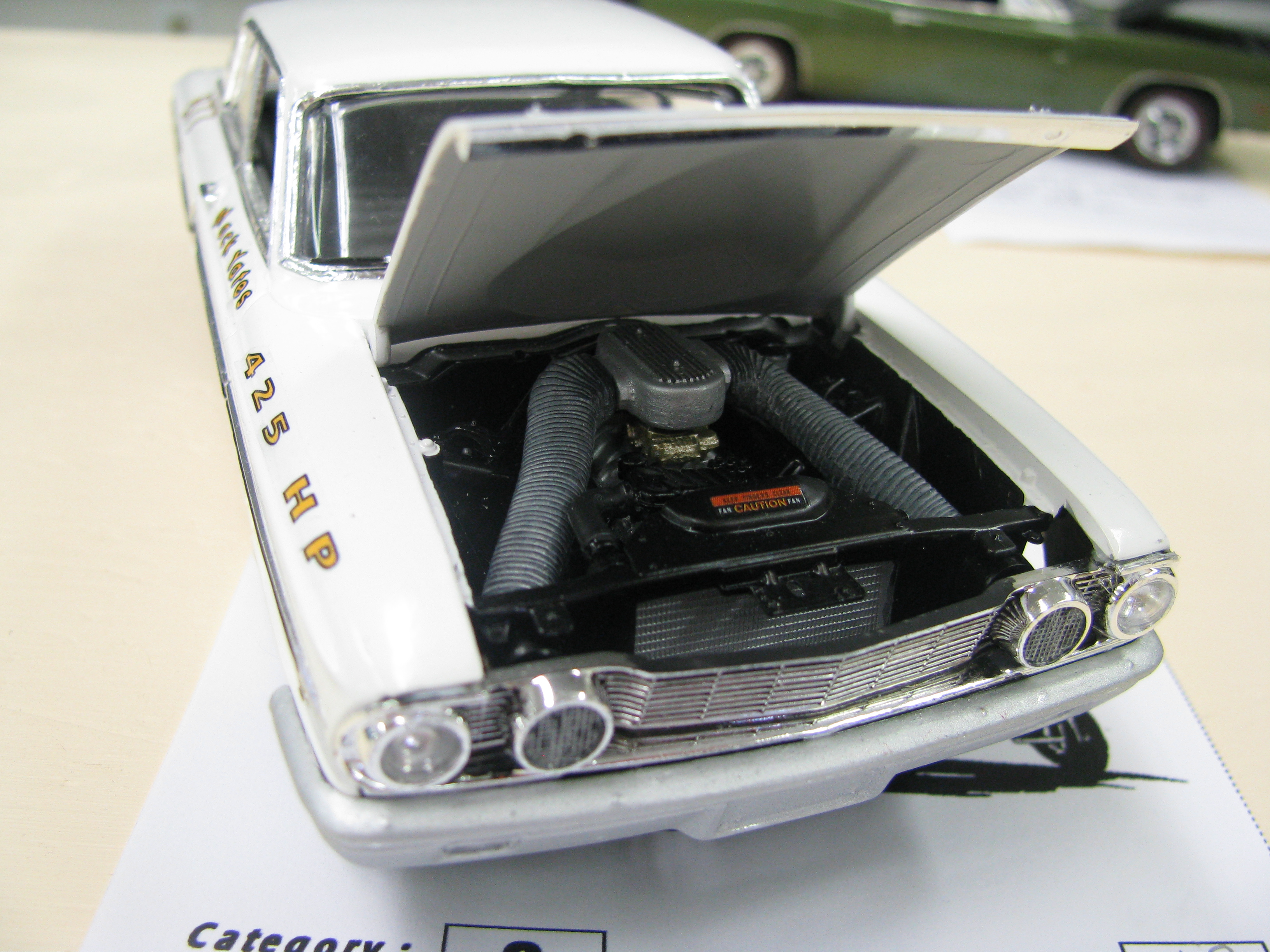

1964 Ford Thunderbolt Model Car 1964
Photo ©2010 Bill Crittenden
2010 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 3,389KB
1964 Ford Thunderbolt Model Car 1964
Photo ©2010 Bill Crittenden
2010 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 3,237KB
1964 Ford Thunderbolt Model Car 1964
Photo ©2010 Bill Crittenden
2010 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 3,280KB
1964 Ford Thunderbolt Model Car 1964
Photo ©2010 Bill Crittenden
2010 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 3,035KB
1964 Ford Thunderbolt Model Car 1964
Photo ©2012 Bill Crittenden
2012 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 2.3MB
1964 Ford Thunderbolt Model Car 1964
Photo ©2012 Bill Crittenden
2012 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 2.3MB
1964 Ford Thunderbolt Model Car 1964
Photo ©2012 Bill Crittenden
2012 Cedarville Model Car Contest and Swap Meet
View photo of 1964 Ford Thunderbolt Model Car - 2.1MB


Merchandise

Type & Item #NameDetails
Model Kit - Revell 7450Tasca Ford ThunderboltHot Rod, 1:25 scale
